Full range surface-mount loudspeaker for indoor and outdoor installation applications
40 Watts continuous, 160 Watts peak power
4" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
0.75" ferrofluid cooled soft dome neodymium high frequency driver
110° constant directivity dispersion for optimum coverage
EN 54-24 certified for fire detection and fire alarm systems
UV and weather resistant UL 94 V-0 ABS enclosure
Multiple transformer taps for 70 V and 100 V line systems
Low insertion loss 30 W line transformer with EN 54 compliant tamper-resistant tapping switch
All components weather resistant to IP64 for outdoor use
Stylish durable enclosure in a semi matt white paint finish fits unobtrusively in any environment
Painted perforated aluminium mesh grille with dust protection
Yoke bracket included for ease of installation
Phoenix* connectors with ABS cover and EN 54 compliant strain relief clamping mechanism for fire rated cable

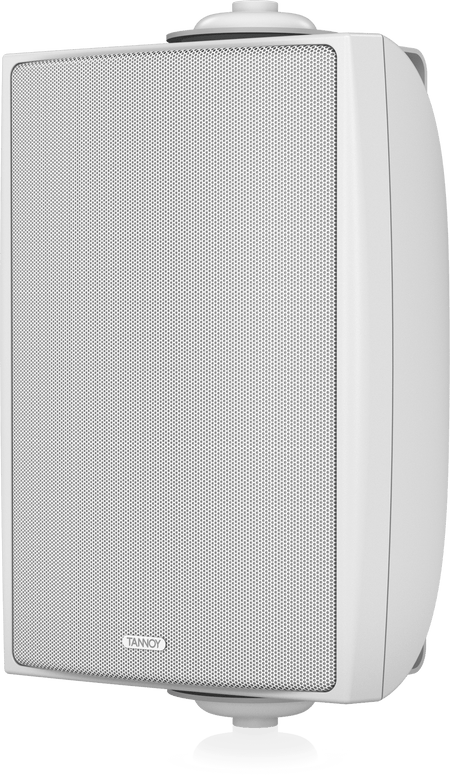

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 4T (EN 54)-WH is an ultra-compact 160-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 4T (EN 54)-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. EN 54-24 certification for fire detection and fire alarm systems makes the DVS 4T (EN 54)-WH the perfect choice where safety is a top priority.

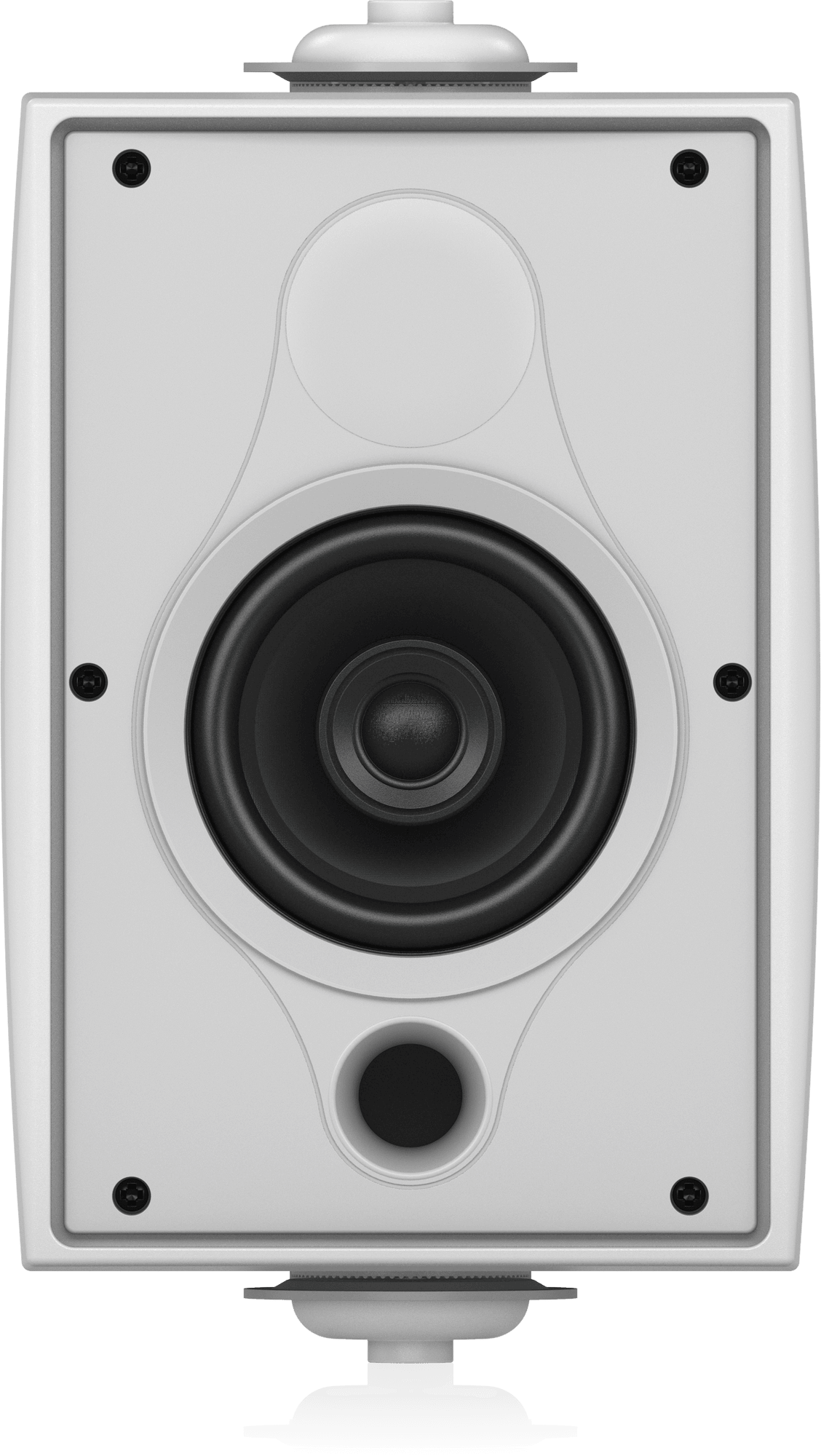

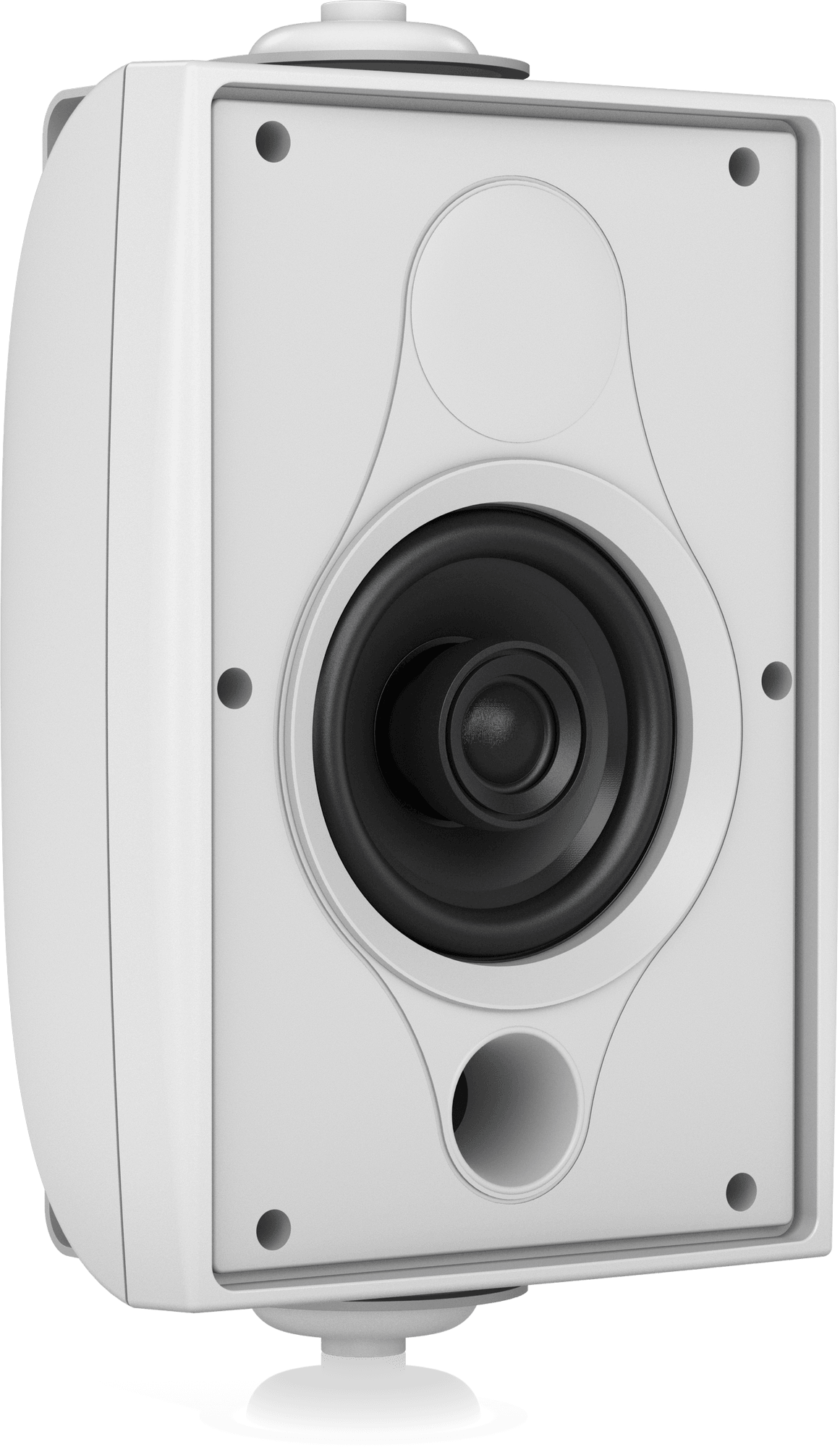

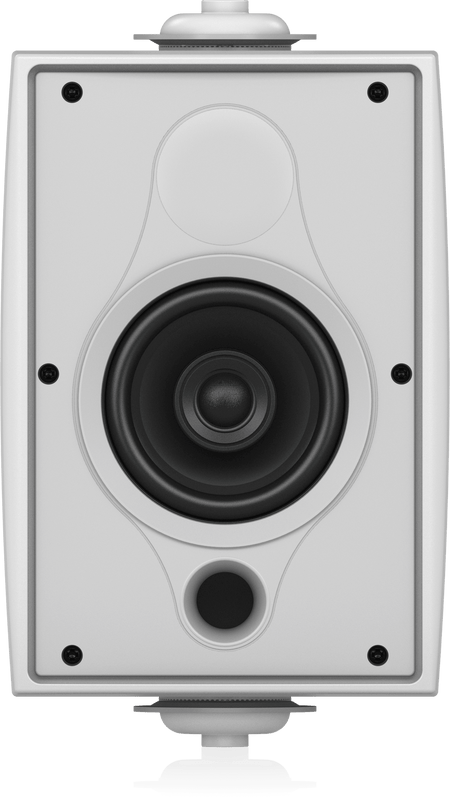

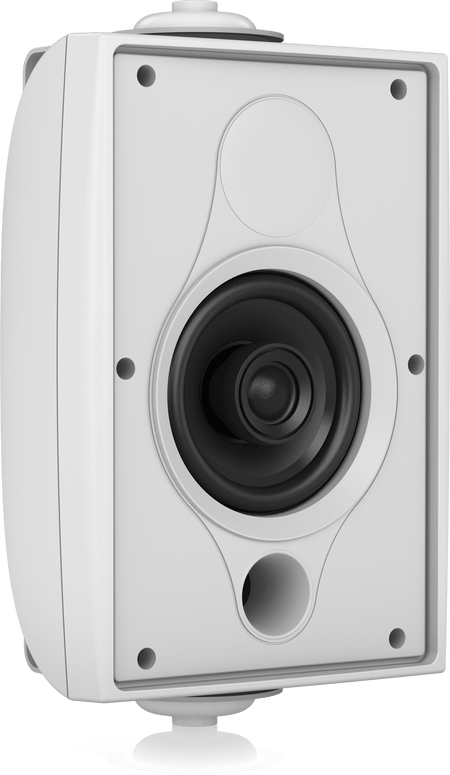

DVS 4T (EN 54)-WH’s point-source design comprises a 100 mm (4.00") mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in a stylish injection moulded ABS enclosure. Certified for water and dust ingress protection to IP64 standard, the DVS 4T (EN 54)-WH is a exceptional choice for challenging environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

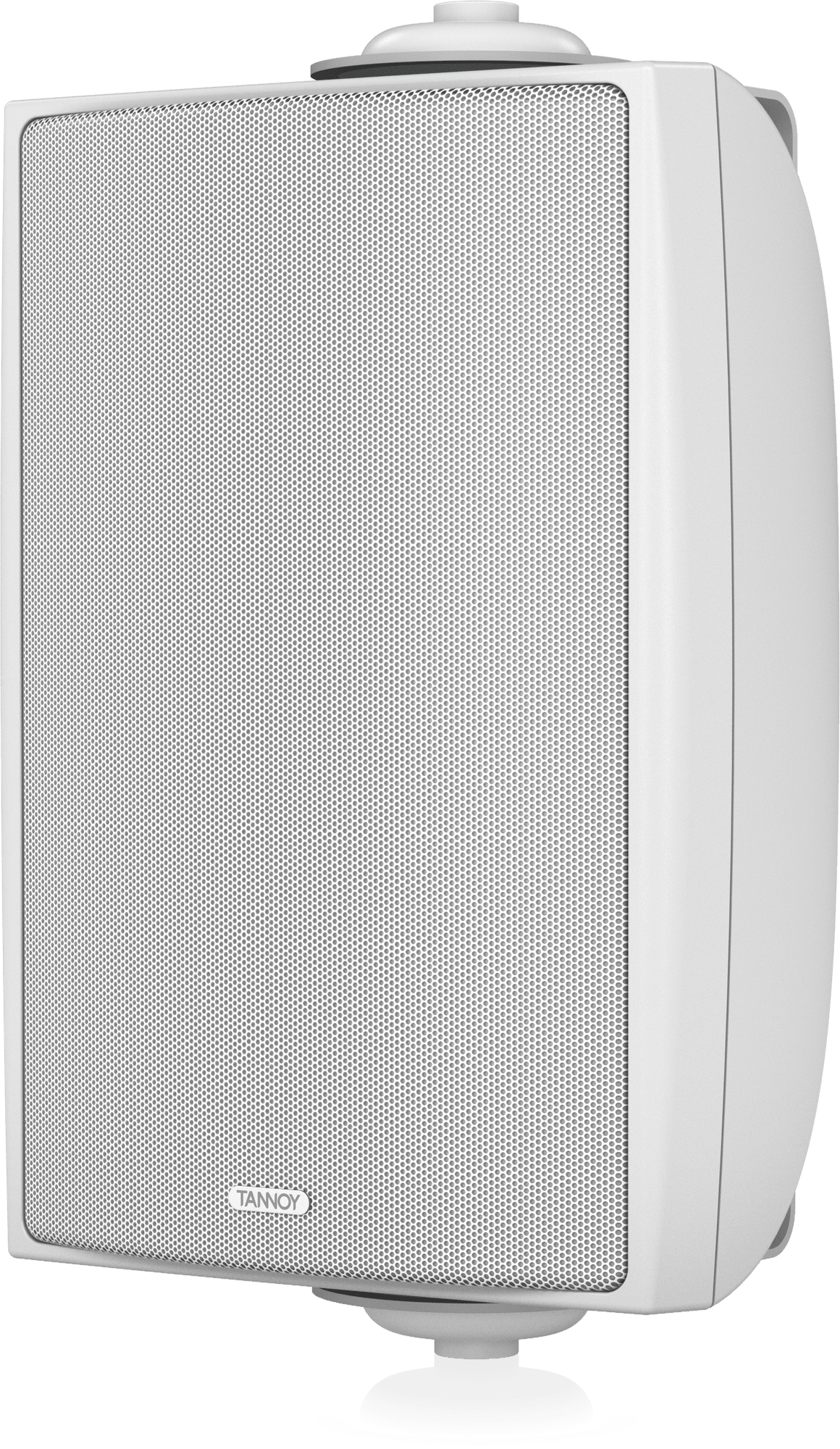

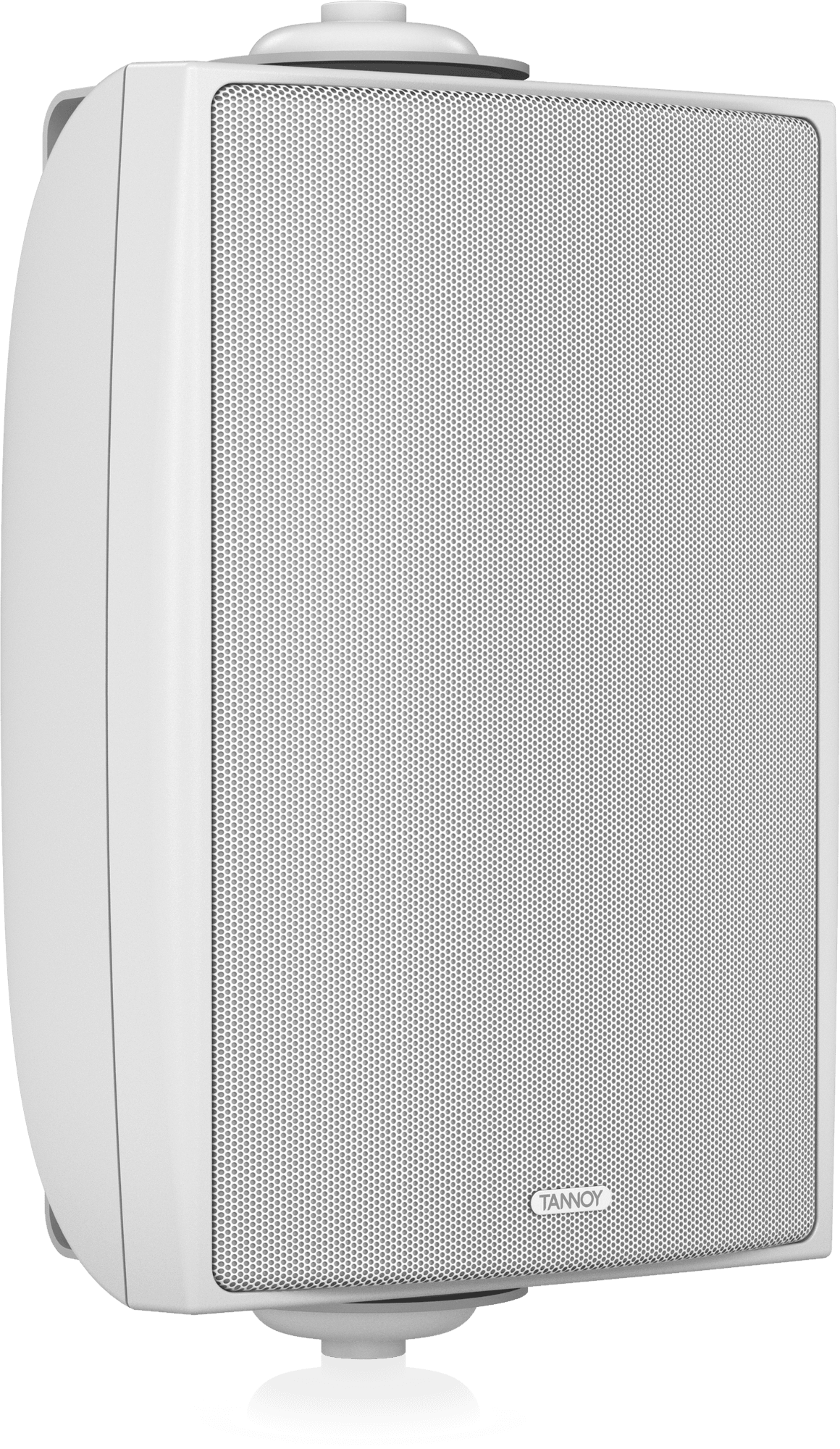

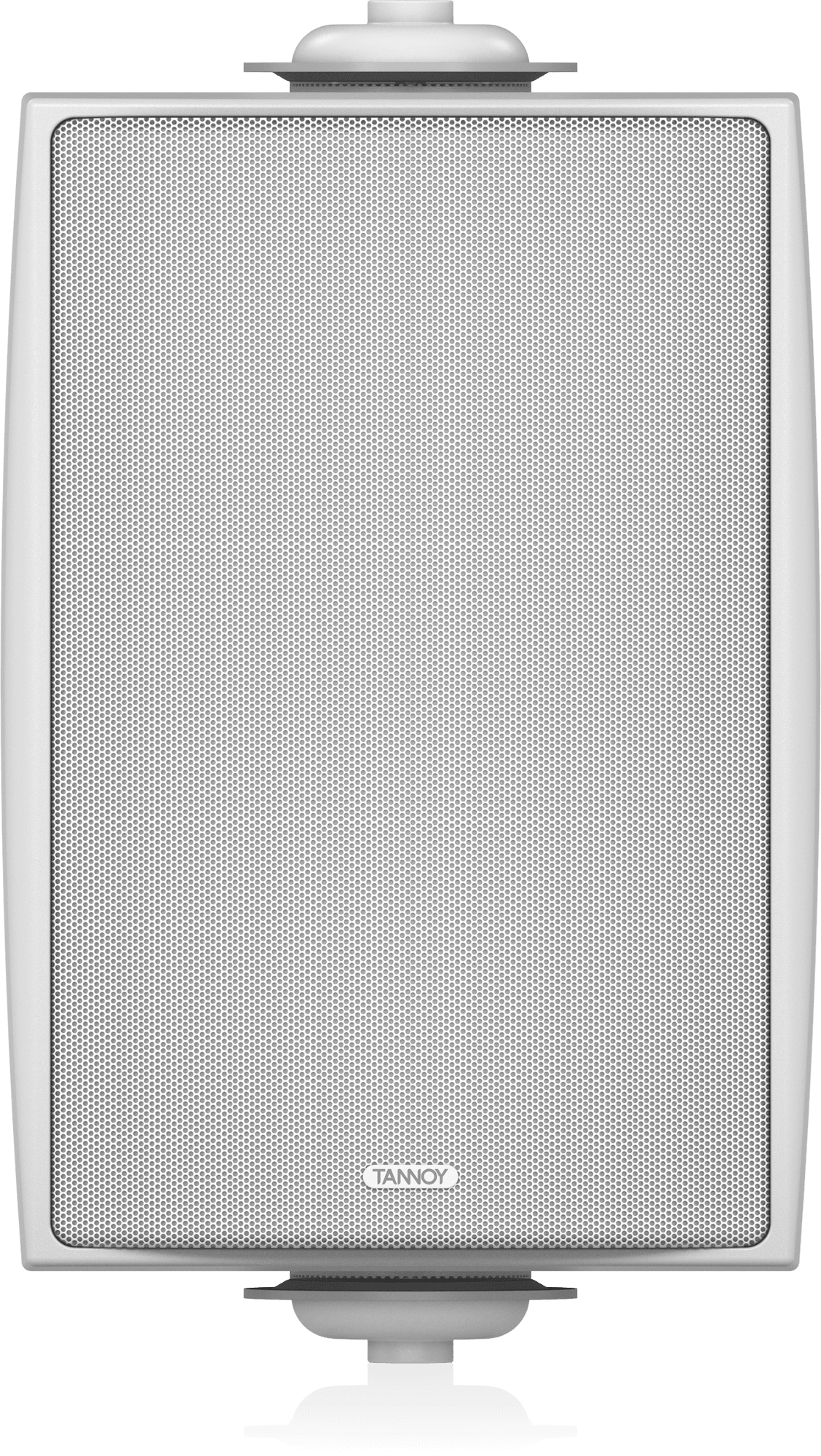

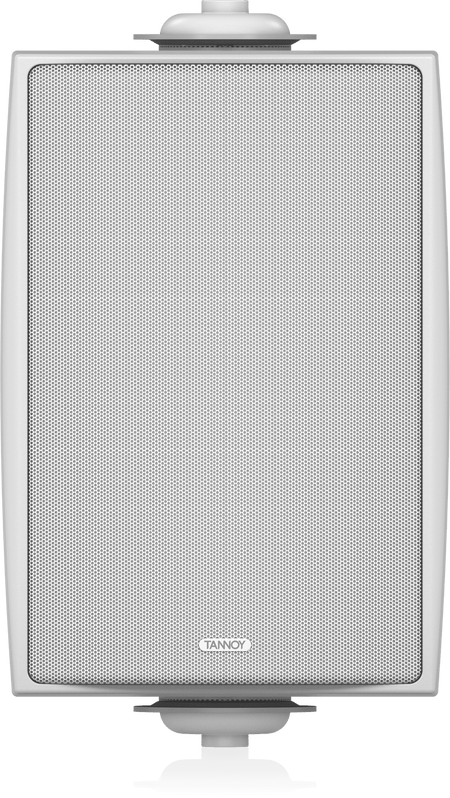

The highly durable and scuff resistant ABS enclosure features a semi mat white painted finish, and comes with an aesthetically pleasing aluminium grille. Installation is quick and easy, thanks to the included colour-matched steel mounting bracket and finger-adjustable hardware on the enclosure top and bottom. Additionally, two threaded inserts are provided on the back of the cabinet, which are compatible with industry standard brackets. Phoenix* I/O connectors with ABS cover and EN 54 compliant strain relief clamping mechanism for fire rated cable are provided for added convenience.
|
Frequency response (-3 dB) |
75 Hz – 20 kHz |
| Frequency response (-10 dB) | 60 Hz – 30 kHz |
| Rated sensitivity (1 W, Lo Z) | 84 dB |
| Power Handling |
Average - 40 W Programme - 80 W Peak - 160 W Recommended amplifier power - 80 W @ 6 Ω Nominal Impedance (Lo Z) - 6 Ω |
| Rated Maximum SPL (1 m, Lo Z) |
Average - 100 dB Peak - 106 dB |
| Transducers |
Low frequency - 100 mm (4") mineral loaded cone material High frequency -19 mm (0.75") coaxially mounted |
|
Physical |
Grille - Aluminium, painted Connectors - Removable locking connector with screw Dimensions - 277 x 170 x 166 mm (10.9 x 6.7 x 6.5") Weight - 2.8 kg (6.2 lbs) |
