Tannoy DVS 4T (EN 54) - WHITE
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- Full range surface-mount loudspeaker for indoor and outdoor installation applications
- 40 Watts continuous, 160 Watts peak power

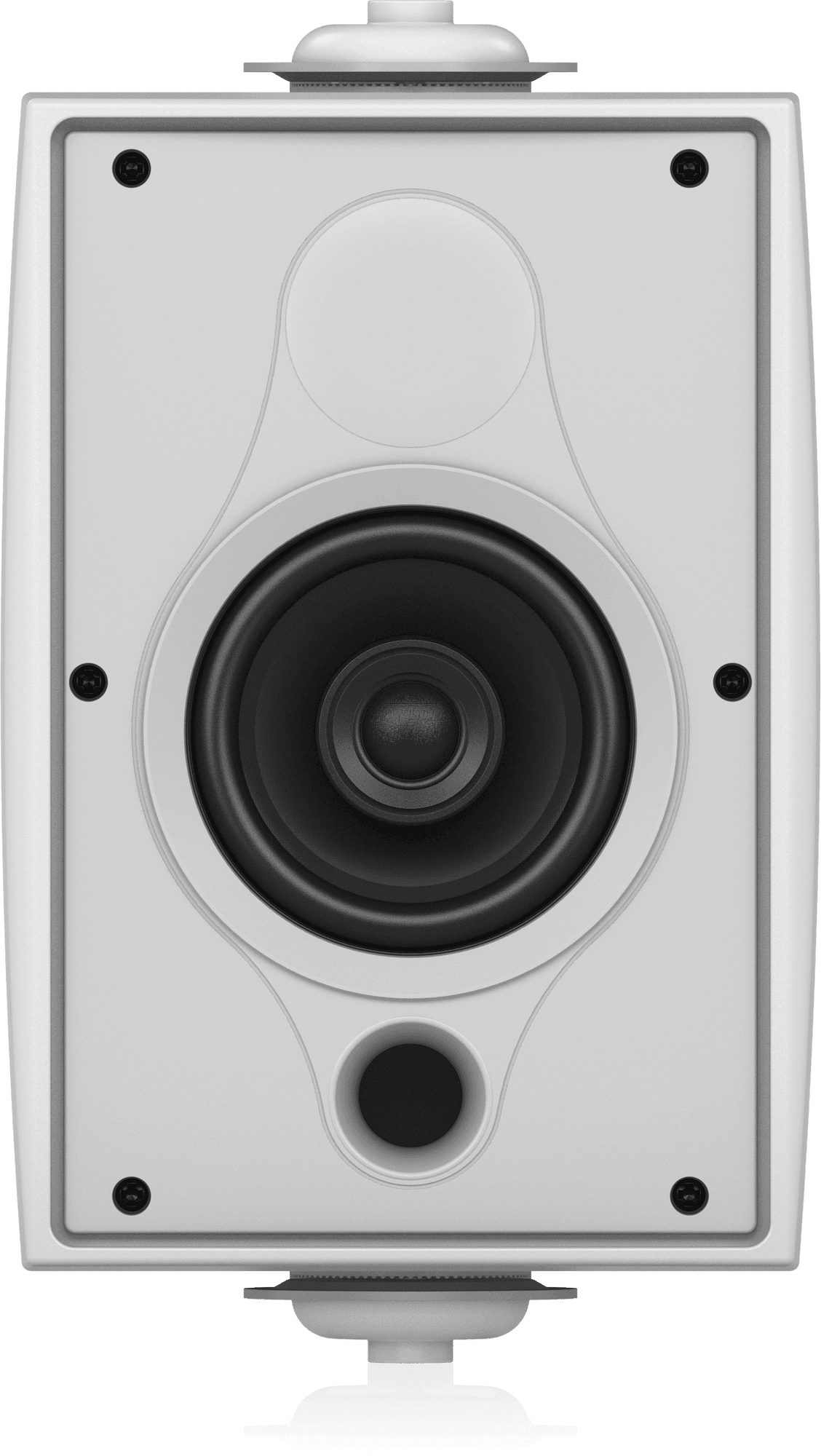

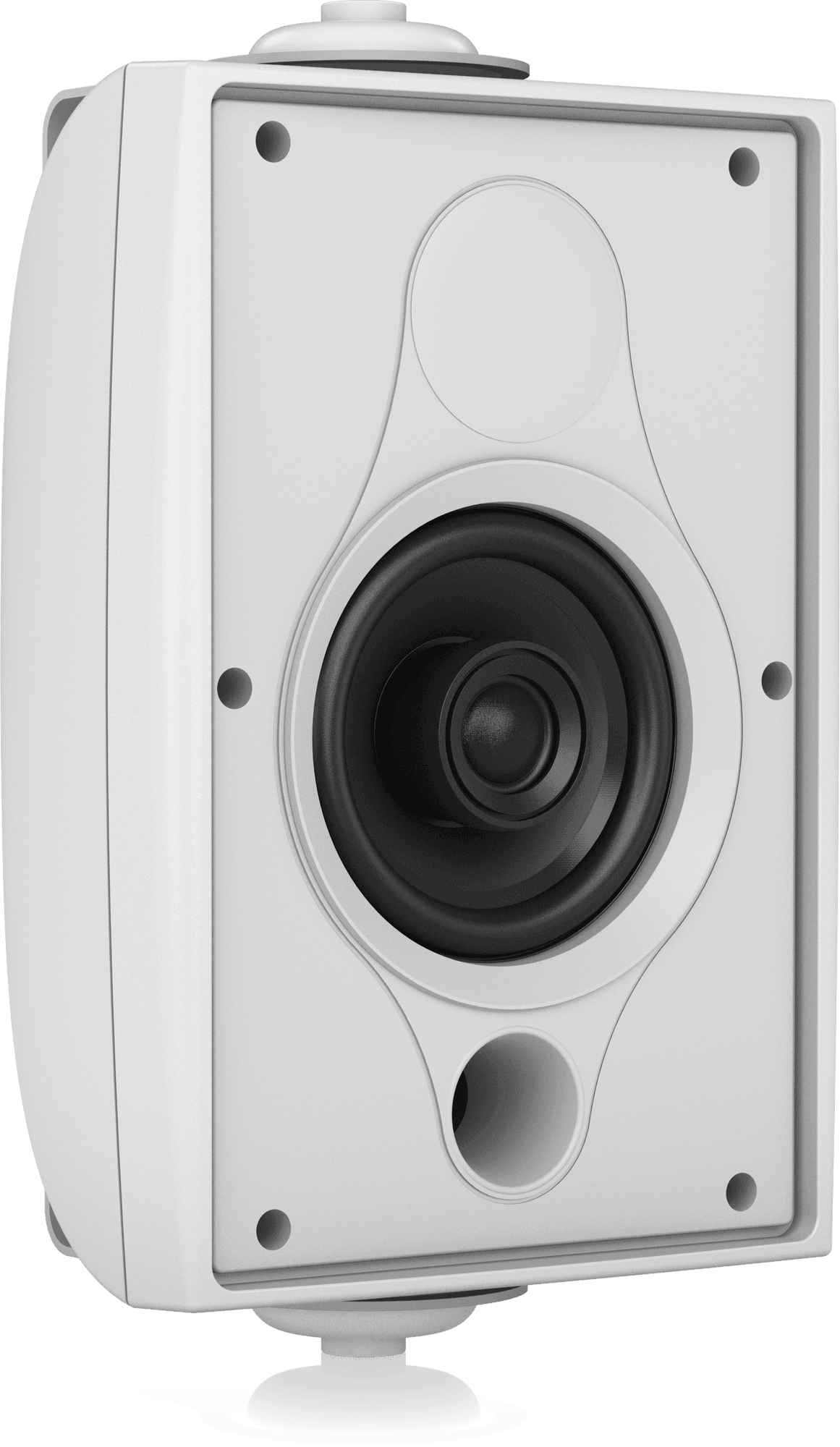

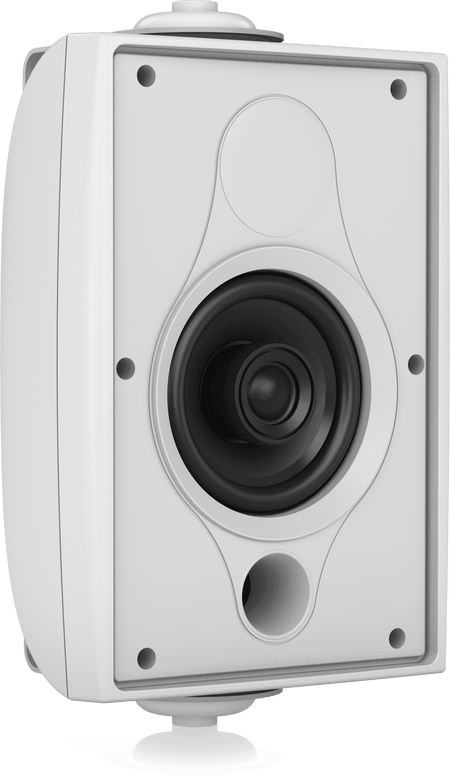

- 4" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
- 0.75" ferrofluid cooled soft dome neodymium high frequency driver
- 110° constant directivity dispersion for optimum coverage
- EN 54-24 certified for fire detection and fire alarm systems
- UV and weather resistant UL 94 V-0 ABS enclosure
- Multiple transformer taps for 70 V and 100 V line systems
- Low insertion loss 30 W line transformer with EN 54 compliant tamper-resistant tapping switch
- All components weather resistant to IP64 for outdoor use

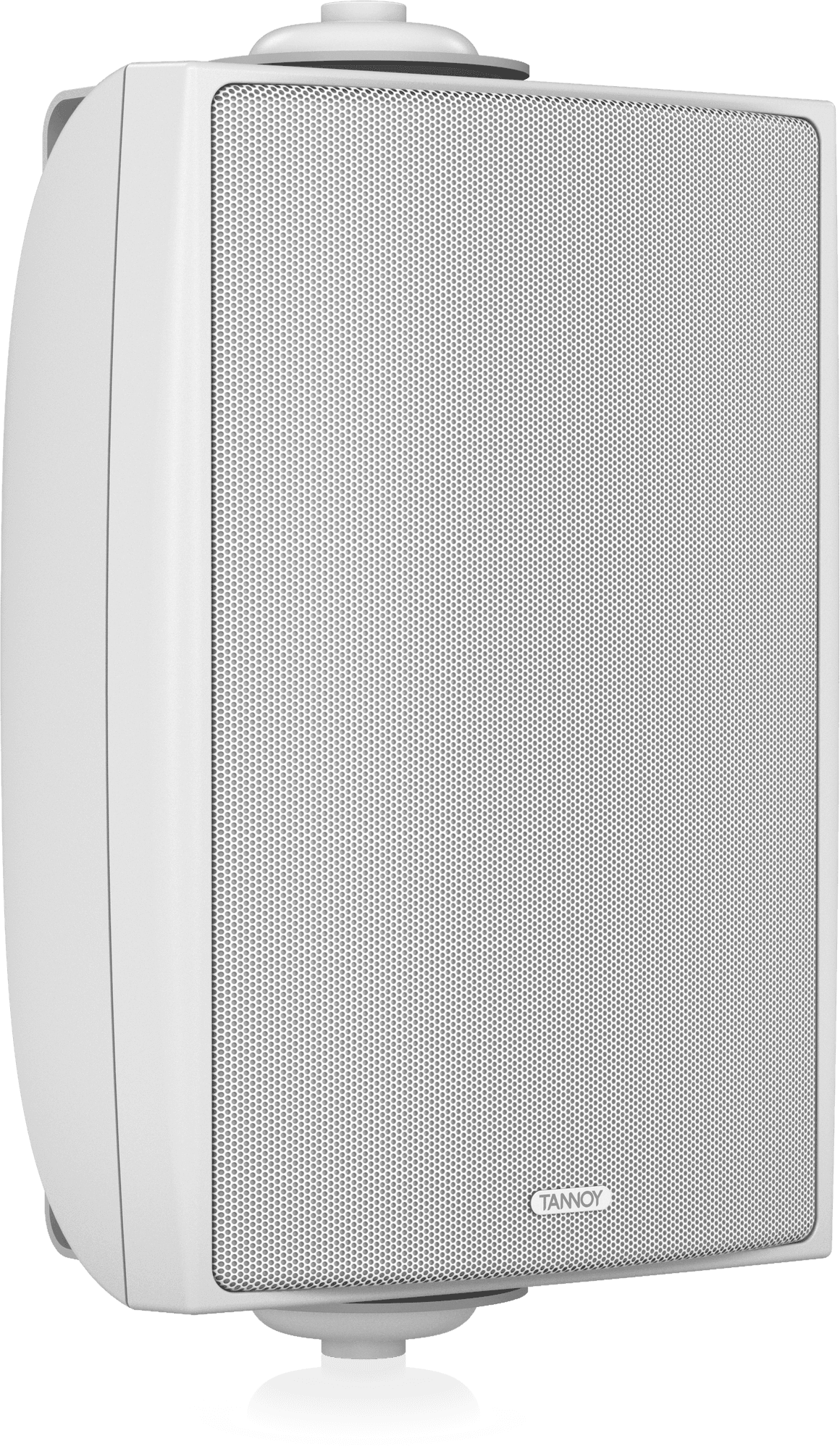

- Stylish durable enclosure in a semi matt white paint finish fits unobtrusively in any environment

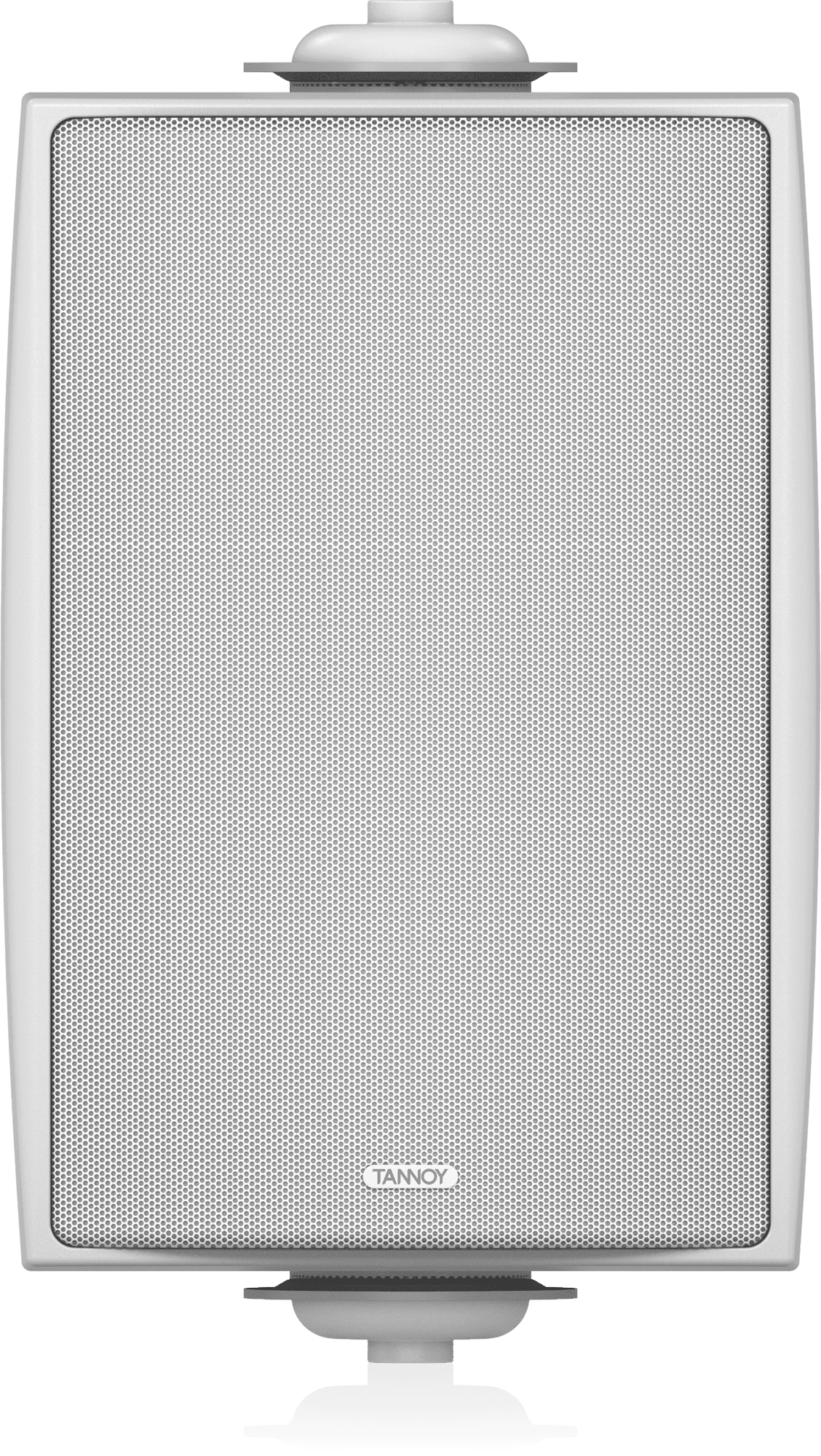

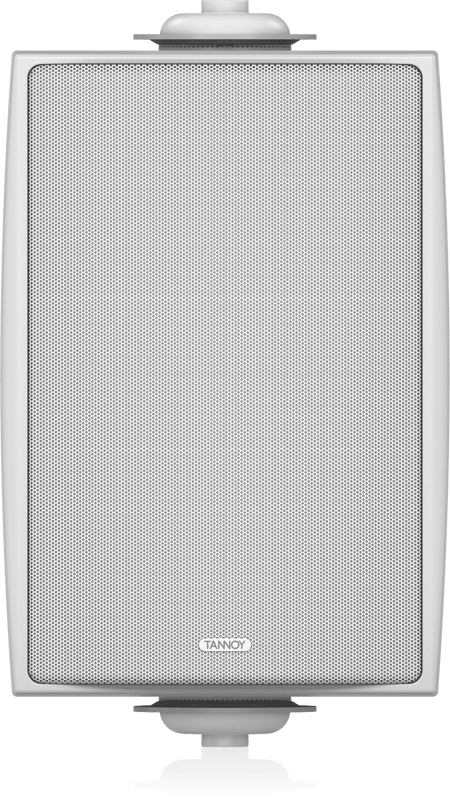

- Painted perforated aluminium mesh grille with dust protection

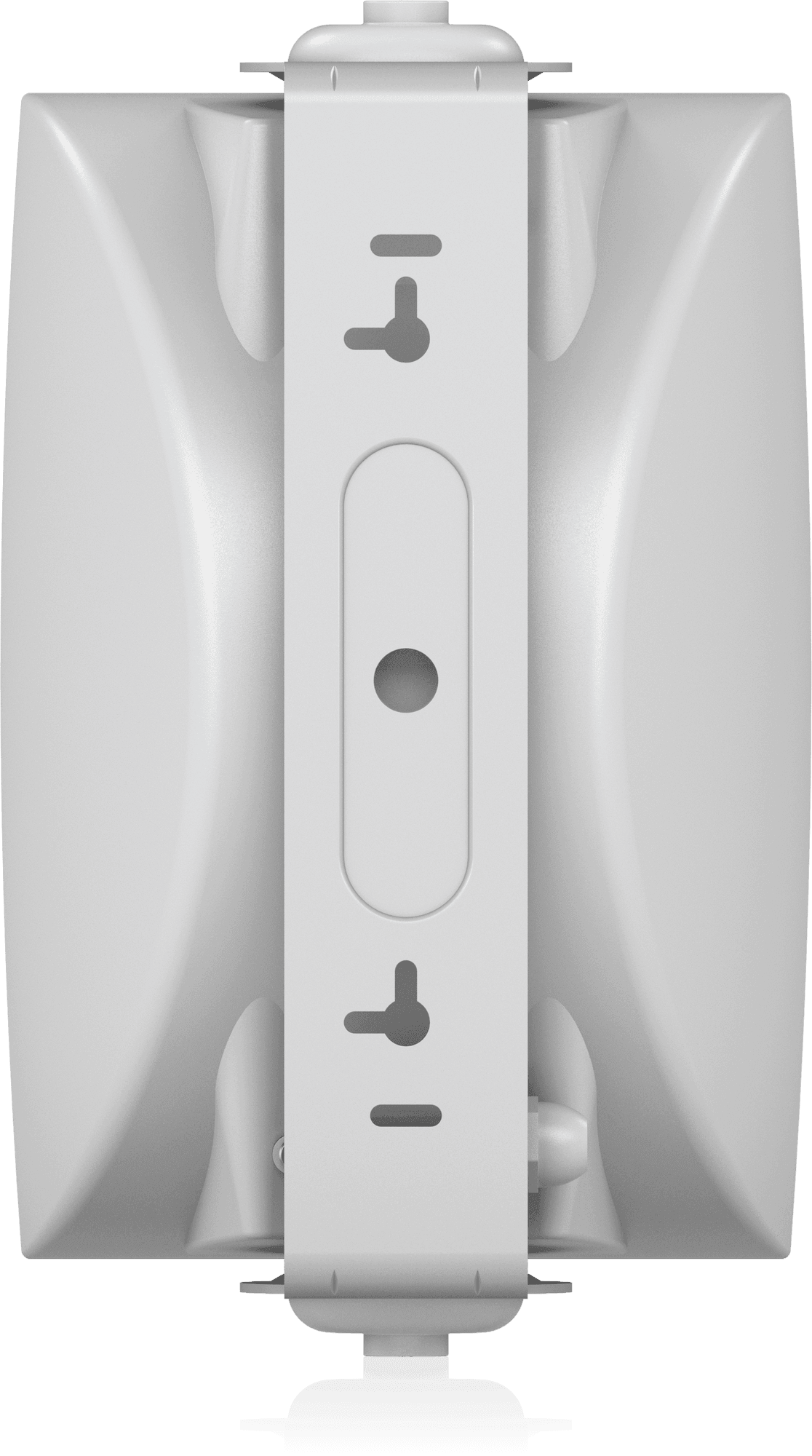

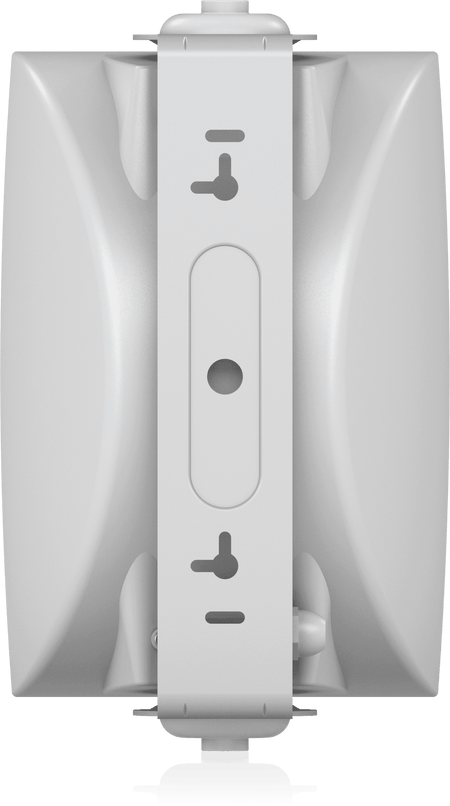

- Yoke bracket included for ease of installation

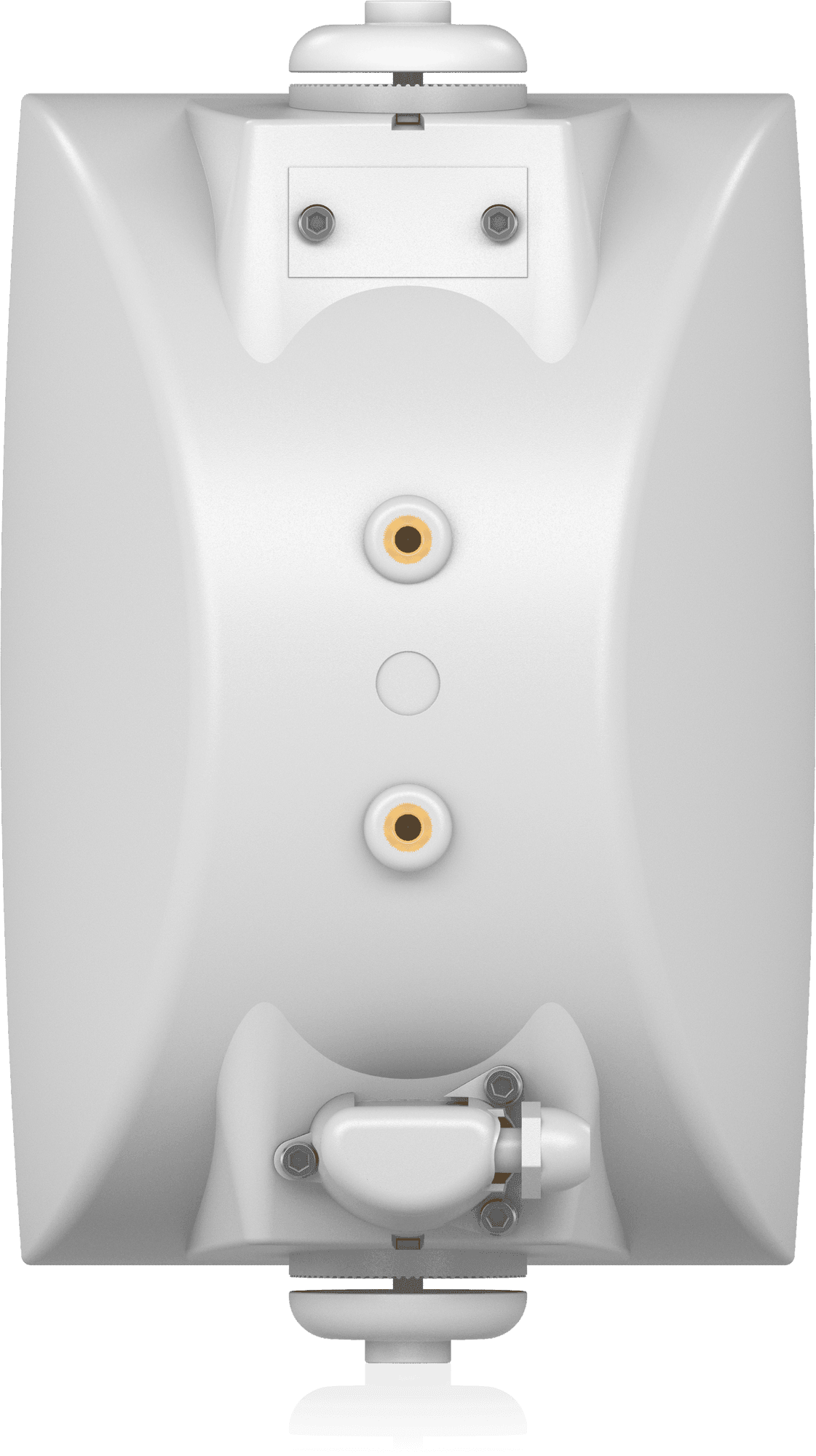

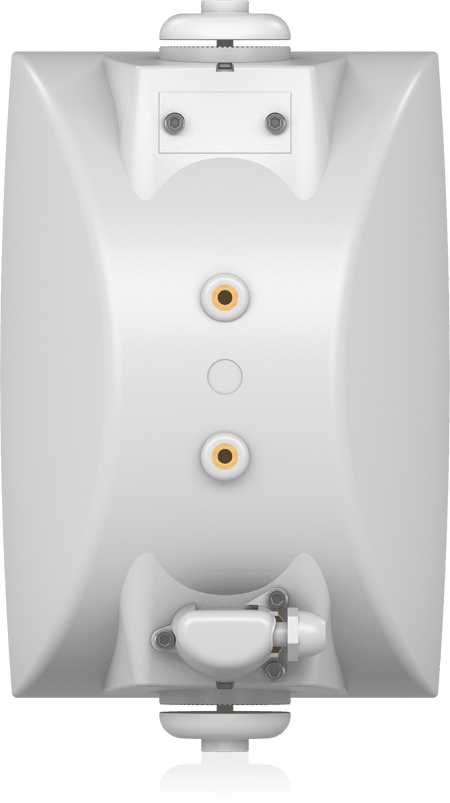

- Phoenix* connectors with ABS cover and EN 54 compliant strain relief clamping mechanism for fire rated cable
DESCRIPTION
Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 4T (EN 54)-WH is an ultra-compact 160-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 4T (EN 54)-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. EN 54-24 certification for fire detection and fire alarm systems makes the DVS 4T (EN 54)-WH the perfect choice where safety is a top priority
SPECIFICATIONS
Frequency response (-3 dB)
75 Hz – 20 kHz
Frequency response (-10 dB)
60 Hz – 30 kHz
Nominal Impedance (Lo Z)
6 Ω
Recommended amplifier power:
80 W @ 6 Ω
Connectors:
Removable locking connector with screw terminals with “loop through” facility
Transformer setting:
Rotary Switch
Dimensions:
277 x 170 x 166 mm (10.9 x 6.7 x 6.5")
Weight:
2.8 kg (6.2 lbs)
